MAX POWER LC Series

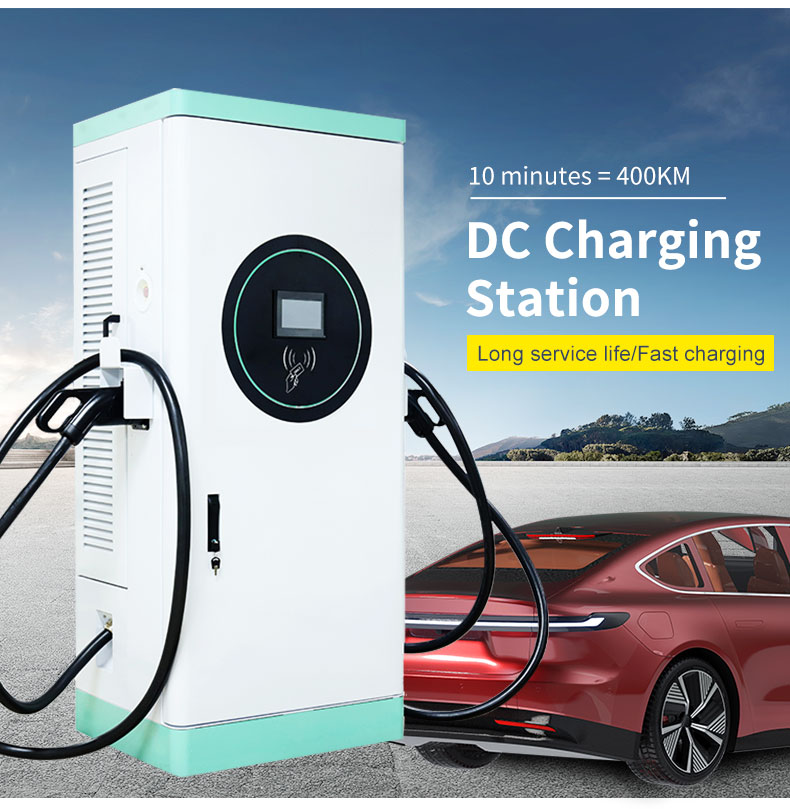

MAX POWER LC Series DC Charger delivers 400KM range in 10 minutes for 1000KM+ EVs. Features hybrid cooling: 400A liquid-cooled gun + 250A natural-cooled gun. Lightweight cables enhance accessibility, while 180KW output with 200-1000V wide voltage ensures ultra-fast charging. Supports Plug&Play/RFID/OCPP activation and 7-inch multilingual interface.
Liquid-Cooled DC Charging Station
LC series

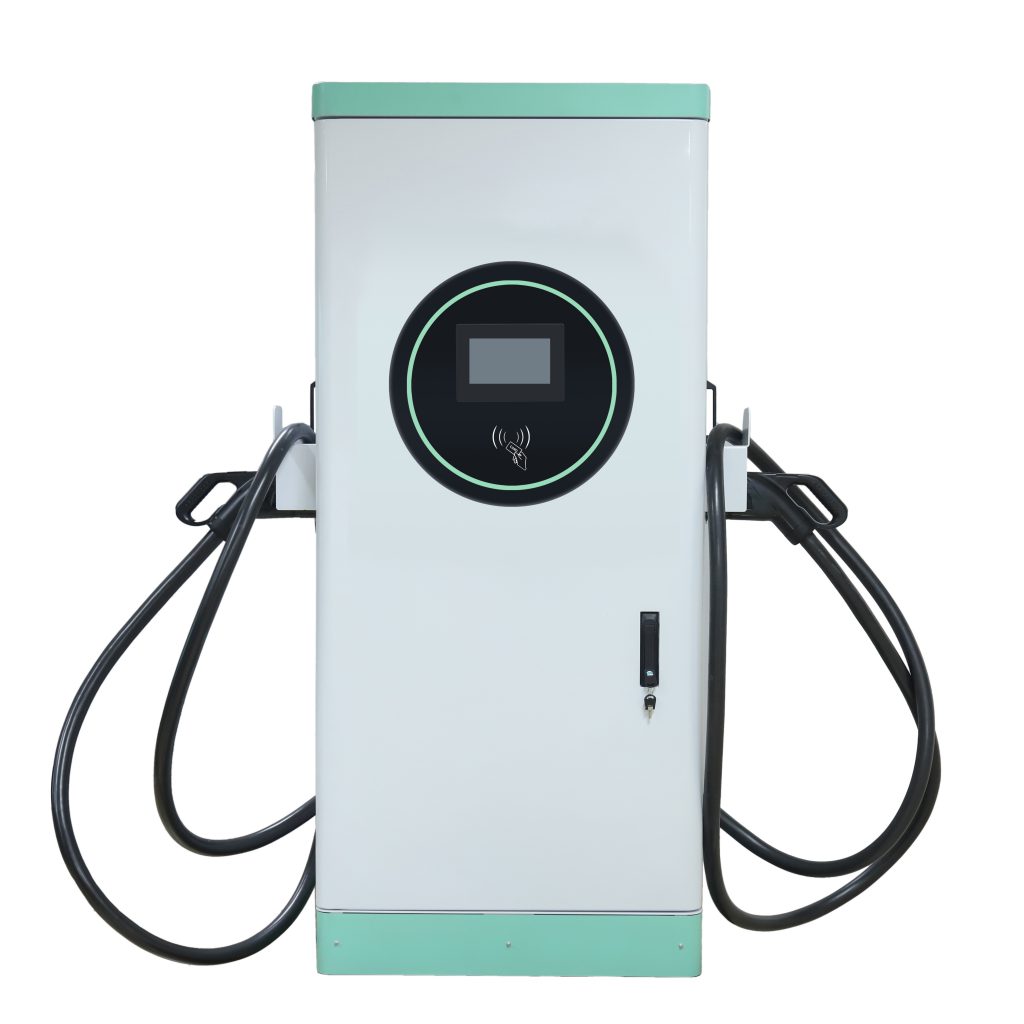

LC Series (850×585×1745mm) features modular design for swift installation. Liquid-cooling enables sustained 400A output with 2100W heat dissipation. Operates at -25°C to +50°C (IP54) with multi-layer protections. Supports 180KW single-gun full power or balanced dual-gun charging via 5M lightweight cables. Includes 7-inch multilingual interface, 4G connectivity, and emergency stop.
| Product Parameters | ||
|---|---|---|
| Product Model | LC1801K | |
| Input Characteristics | Voltage range | AC380V ±20%（480V optional） |
| Frequency | 45-65HZ | |
| Power factor | ≥0.95 | |
| Input Current | 0-340A | |
| Output Characteristics | Output power | 180KW |
| Auxiliary power | GB/T/CCS1/CCS2/CHAdeMO：12V | |
| Voltage range | 200-1000Vdc | |
| Output Current | 0-400A, liquid cooled; 0-250A, natural cold gun | |
| Charging mode | Single Connector : Full Power , Double Connector : Equalization |
|
| Number of Charging Connector | Single / Double | |
| Cable Length | 5 meters standard (optional) | |
| Cooling source | Cooling power | 2100W |
| Dissipation medium | Ethylene glycol at 50% concentration | |
| Power voltage | ≤250W Input voltage 24Vdc | |
| IP Rating | IP54 | |
| NetWorking Methods | 4G,WIFI Ethernet | |
| Human-computer interaction | 7 inch screen , Display interface language can be customized | |
| Charging mode | Plug&Play ,RFID, OCPP Protocol ,Password charging | |
| Weight Size | 850*585*1745mm , 340KG | |
| Protective function | Emergency stop/Over-voltage/Over current/Over-temperature/ Short circuit/Leakage/Lightning/Insultation Monitoring Protection. |
|
- Achieve 400KM range in just 10 minutes – engineered for EVs exceeding 1000KM total range. Our liquid-cooled gun delivers 400A high-current output, while the hybrid cooling system (liquid + natural) ensures stability at 180KW max power. Perfect for busy urban stations.
- Liquid-cooling with 2100W dissipation enables continuous 400A operation. The 50% ethylene glycol solution prevents overheating, while IP54-rated housing operates flawlessly from -25°C to 50°C. No more power throttling!
Reduced cable weight: more friendly for women or elderly people.
