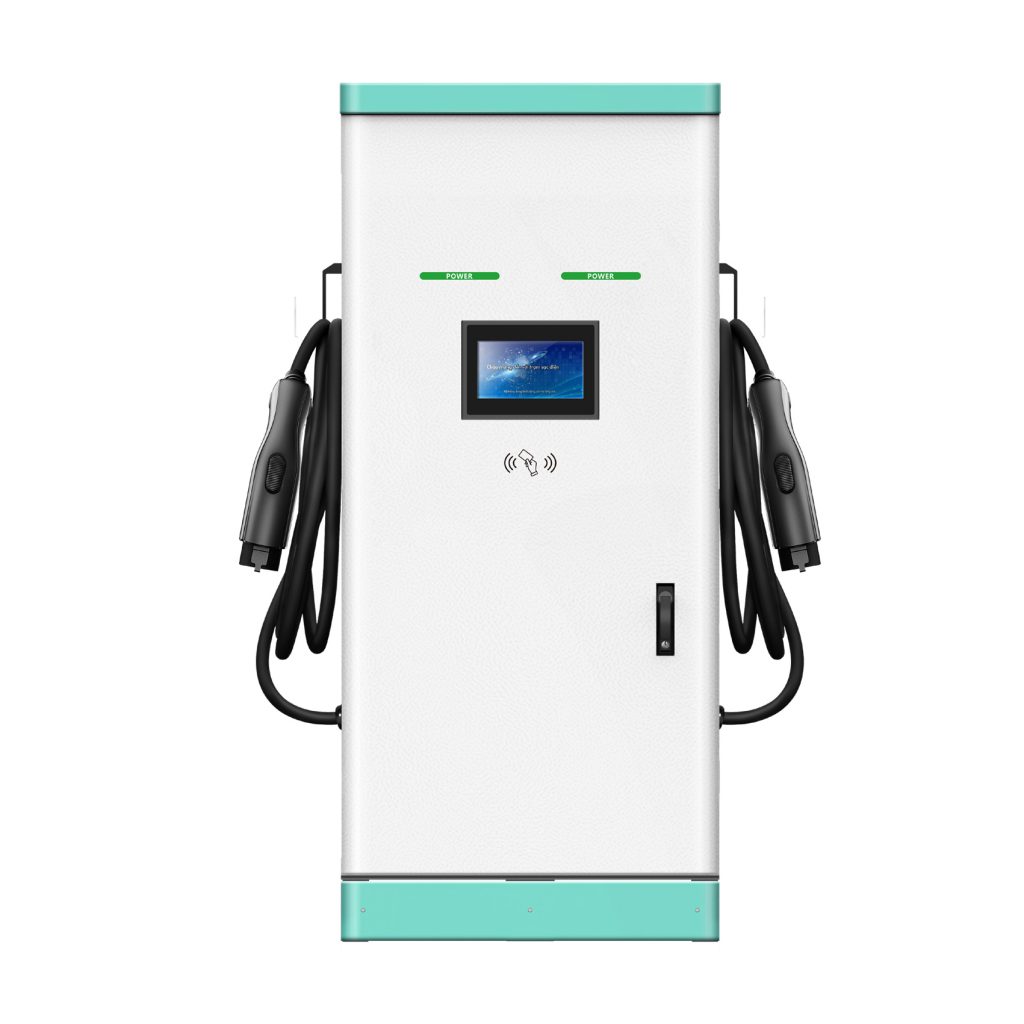

MAX POWER HC 360KW Series
The 7-inch touchscreen + RFID reader enables OCPP/plug-and-play activation, while IK10 impact protection ensures durability. Critical specs include wide voltage output, 2000m altitude operation, and compliance with GBT/EN61851/CHAdeMO standards. Backed by TUV certification, it integrates 4G/Ethernet connectivity, POS compatibility, and sensorless payment – making it ideal for space-constrained urban stations.
DC Charging Station
HC Series 240-360KW
Revolutionize home EV charging with the ACP Series. Its compact design (380×1360×320mm) supports single/dual-gun modes, dynamically distributing 7-44KW power between vehicles via DLB technology.
| Product Parameters | ||||||||
|---|---|---|---|---|---|---|---|---|
| Product Model | HC2401K | HC3201K | HC3601K | |||||
| Output power | 240KW | 320KW | 360KW | |||||
| Output voltage | 200-1000V | |||||||
| Input voltage | AC380V±20%/AC480V±20%(Optional1) | |||||||
| Input current | 400A | 530A | 600A | |||||
| Output current | 0-300A (300A optional configuration) | |||||||
| Frequency | 50-60HZ | |||||||
| Number of Charging Guns | 2 | |||||||
| Charging way | Automatic switching of fast and slow guns / dual gun parallel charging | |||||||
| Charging mode | Swipe card, APP, Manual | |||||||
| Charge Gun Cable Length | 5M | |||||||
| Human-computer interaction | 7-inch color touch screen + IC contactless card reader | |||||||
| Network connection | Standard: CAN/485/Ethernet Optional: GPRS/4G | |||||||
| Sizes(mm) | 1750*620*780 | |||||||
| Weights | 120KG | |||||||
| Operating temperature | -25℃ ~ +50℃(Derated above 50℃, can be equipped with a heater in the cold area.） | |||||||
| Height above sea level | 2000M | |||||||
| IP Rating | IP54 | |||||||
| Operating humidity | 5%-90%RH,non-condensing | |||||||
| Charge Gun Cable Length | 5M (Cable length can be customized) | |||||||
| Applicable standards | GB/T20234/EN62196/EN61851-1,JEVSG 105/CHAdeMO | |||||||
| Communication protocols | GB/T27930/CHAdeMO2.0/DIN70121,OCPP 1.6(JSON),ISO 15118 | |||||||
- Can be equipped with AC contactor /smoking sensor / smart charging connector protection / cable management system/ 10.1 LCD screen.
- Auto Charging (Support Sensorless Payment)
- Ultra-Fast Charging Maximum 360KW.
- Charging Time : 300KM equal to 10 minutes.
- Dual-Gun independently with different charging standards (CCS,GB/T,ChadeMo,NACS)
- Remote diagnostics, Support 4G, Wifi, Ethernet , OCPP1.6 ,2.0 backends platform and POS Machine.
