MAX POWER VC Series
At just 240mm thick, this TUV-certified powerhouse packs dual-gun output. Charges CCS/GB-T/CHAdeMO/NACS EVs simultaneously across -25°C to 85°C. Features 7″ touchscreen, 4G/POS integration, and desert-grade IP54 armor. Revolutionize space, redefine speed.
Slim design
Fast Charging
IP54 protection
TUV certified

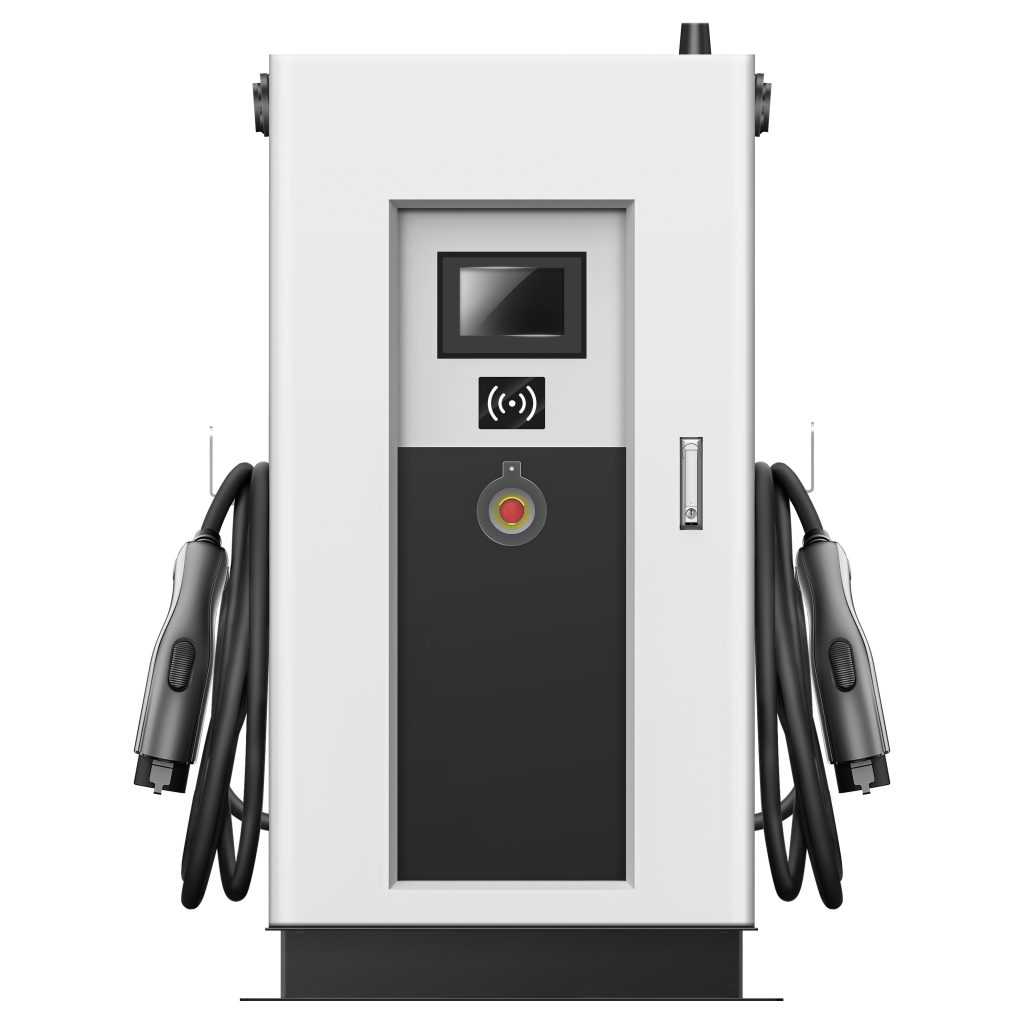

DC Charging Station
VC series
Measuring 1350×690×240mm (100kg), the VC Series features dual-gun heterogeneous charging, breaking conventional size barriers.
Specification of VC Series
| Product Parameters | ||||
|---|---|---|---|---|
| Product Model | VC30750 | VC40750 | VC601K | |
| Output power | 30KW | 40KW | 60KW | |
| Output voltage | 200-750V | 200-1000V | ||
| Input voltage | AC380V±20%(440-480 V Optional) | |||
| Input Current | 45A | 60A | 95A | |
| Output Current | 100A | 120A | 200A | |
| Frequency | 45-60HZ | |||
| Number of Charging Guns | 2 | |||
| Charging way | Charge alternately / evenly | |||
| Charging mode | OCPP / RFID / Password / Plug and Play | |||
| Charging cable length | 5M | |||
| Human-computer interaction | 7-inch color touch screen + IC card contactless reader | |||
| Network connection | Standard: CAN/485/Ethernet Optional: GPRS/4G | |||
| Sizes(mm) | 1350*690*240 | |||
| Weights | 100KG | |||
| Operating temperature | -25℃~+50℃（DeRating above 50℃, with heater for very cold areas） | |||
| Height above sea level | 2000M | |||
| IP Rating | IP54 | |||
| Operating humidity | 5%-90%RH，non-condensing | |||
| Charge Gun Cable Length | 5M（Wire length can be customized) | |||
| Applicable standards | GB/T20234/EN62196/EN61851-1,JEVSG 105/CHAdeMO | |||
| Communication protocols | GB/T27930/CHAdeMO2.0/DIN70121,OCPP 1.6(JSON),ISO 15118 | |||
Compact/Slim design process
- Thickness less than 250mm;
- Power upto 80KW，Space-Saving and minimize installation space.
Compatibility and Versatility
- Dual-Gun independently with different charging standards (CCS,GB/T,ChadeMo,NACS)
- Remote diagnostics, Support 4G, Wifi ,Ethernet , OCPP1.6 ,2.0 backends platform and POS Machine.
Robust and Reliable
- International TUV certified standards;
- Wide range of operating temperatures (-40℃ to + 55℃)
