MAX POWER XC Series
Unlock global EV charging with auto-switching CCS/CHAdeMO/GB/T. Portable 20kg design (IP44+IK08) delivers 7-40KW anywhere. Features -25°C cold-start, 4.3″ touchscreen & cloud control. One device, all protocols, infinite power.
OEM / ODM
Mobile and portable
Rich Configuration
Safety protection
3-in-1 Intelligent DC Charger
XC series

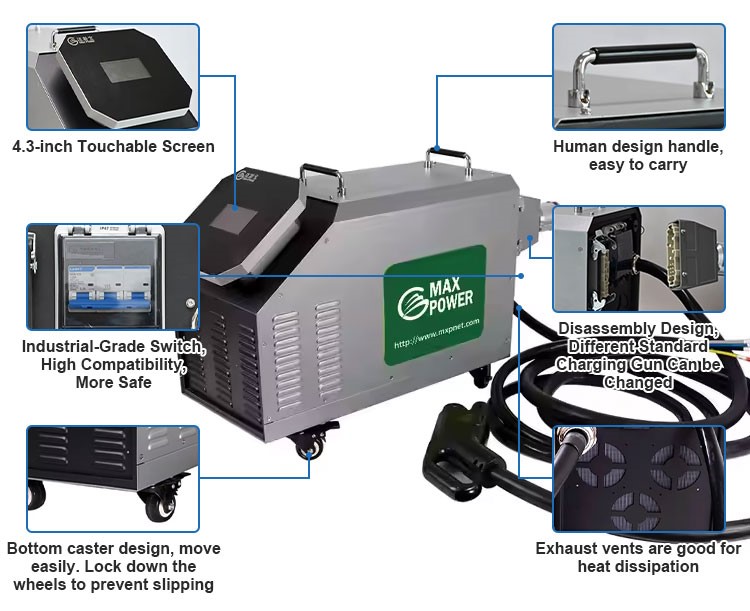

Revolutionize on-the-go power with auto-switching CCS/CHAdeMO/GB/T protocols. This 20kg powerhouse (635×295×500mm) delivers 7-40KW anywhere, surviving -25°C blizzards and 1.5m drops (IP44+IK08 certified).
Specification of XC Series
| Product Parameters | |||||
|---|---|---|---|---|---|
| Product Model | XC07750 | XC201K | XC301K | XC401K | |
| Rating | 7KW | 20KW | 30KW | 40KW | |
| Output voltage | 200-750V | 200-1000V | |||
| Input voltage | 90-265V | 260-475V | |||
| Input Current | 32A | 30A | 45A | 64A | |
| Output Current | 20A | 50A | 100A | 120A | |
| Input wiring | L+N+PE | 3P+N+PE | |||
| Frequency | 50-60HZ | ||||
| Power factor | >99%(Rated voltage & full power) | ||||
| Work efficiency | 95% | ||||
| User interface | 4.3-inch touch Display | ||||
| Sizes (mm) | 635*295*500 | ||||
| Weights | 20KG | 40KG | 50KG | 60KG | |
| Ancillary sources | 12V(24V Optional) | ||||
| Operating temperature | -25℃-+50℃（DeRating above 50℃, with heater for very cold areas） | ||||
| Height above sea level | 2000M | ||||
| IP Rating | IP43 | ||||
| crashworthiness Rating | IK8+ | ||||
| Input line length | 5M(Customization acceptable) | ||||
| Charge Gun Cable Length | 0M(Customization acceptable) | ||||
| Applicable standards | GB/T20234/EN62196/EN61851-23,JEVSG 105/CHAdeMO | ||||
| Communication protocols | GB/T27930/CHAdeMO2.0/DIN70121,OCPP 1.6(JSON),ISO 15118 | ||||
Standard adaptation
- CCS/CHAdeMO/GBT free switching, realize one machine to charge the world.
Safe and secure
- Protection grade IP44, anti-collision grade IK8, moisture-proof, water-proof, mold-proof, dust-proof, flame-retardant and so on;
- At the same time with over-voltage, overload, short circuit, leakage, battery anti-reverse and other protection functions.
Rich Configuration
- Supports OCPP, DLB (Dynamic Load Balancing), RFID, 4G, LAN, WIFI, Bluetooth, Reservation, Password, Cloud Platform Charging and more.
