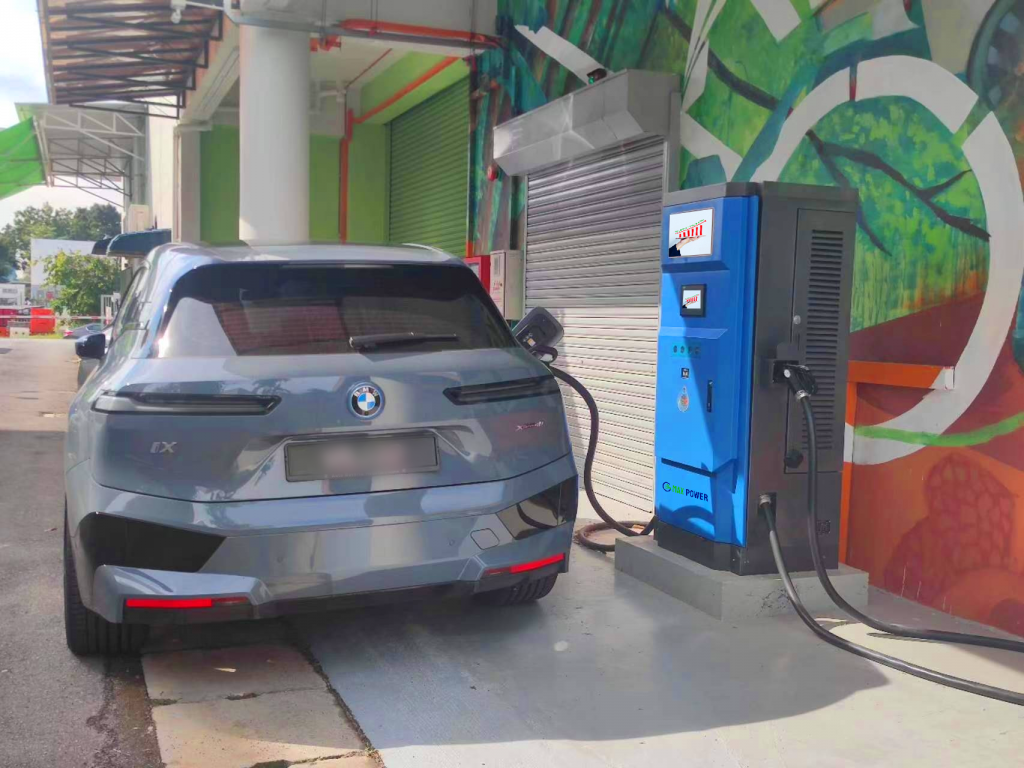

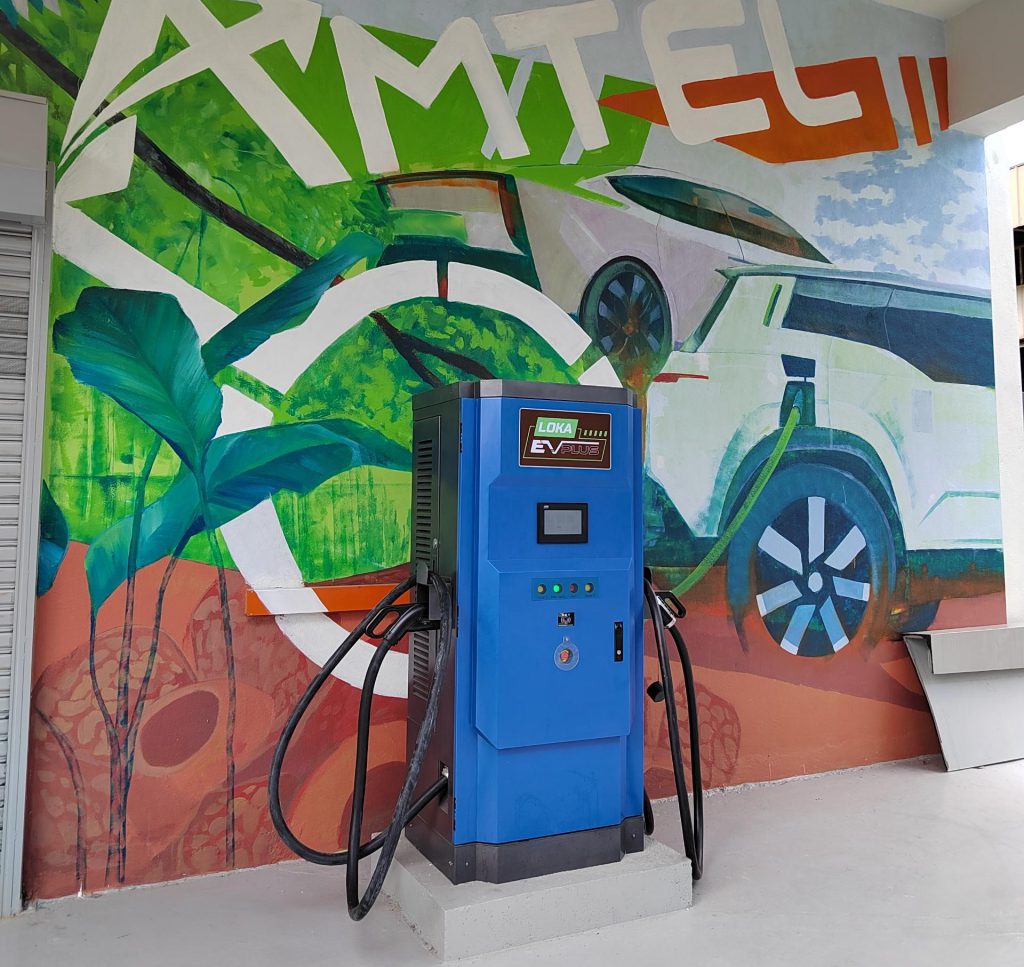

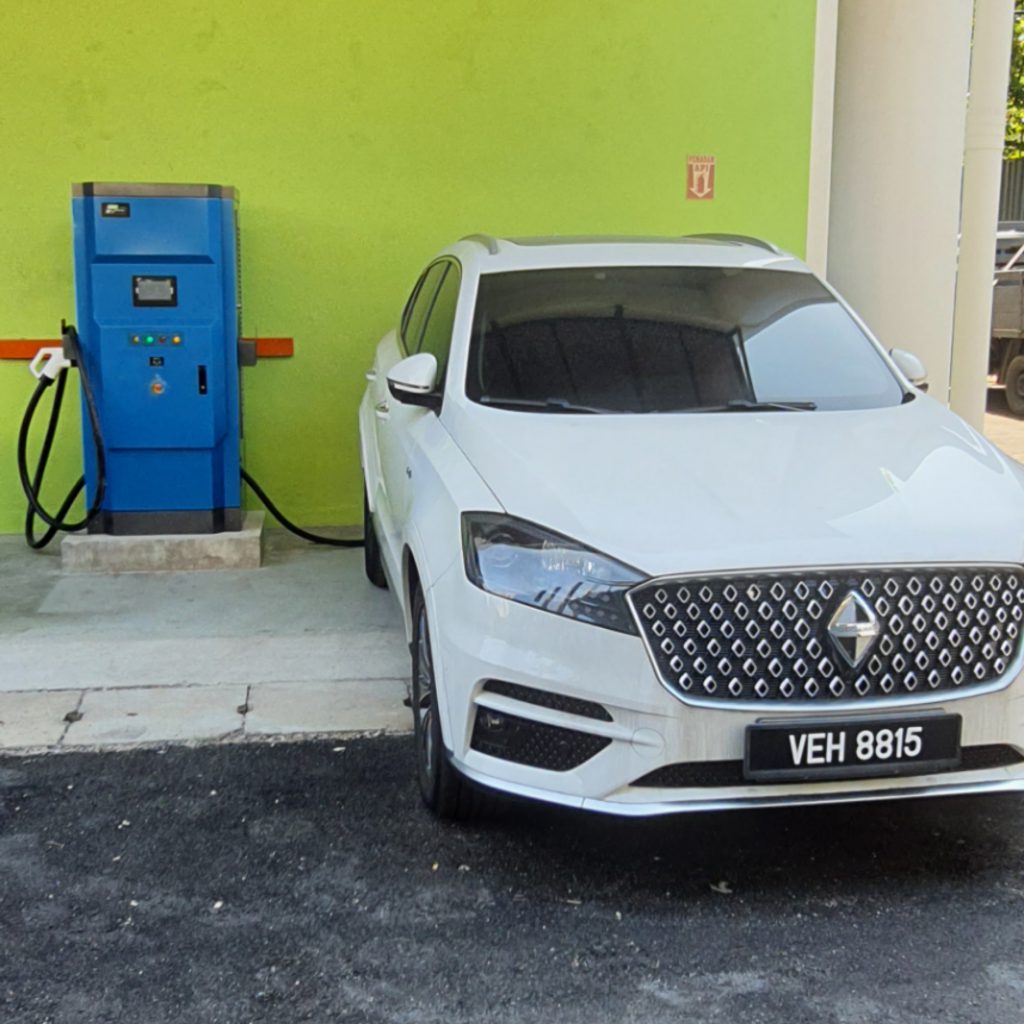

MAX POWER FC Series
MAX POWER FC Series delivers ultra-fast charging up to 240kW, adding 300km range in 10 minutes. Its dual guns operate independently with CCS/GB/T/CHAdeMO/NACS compatibility. Features 7-inch touchscreen + IC card reader, 4G/OCPP 2.0 remote control, and sensorless auto-payment. IP54-rated for –25°C~+50°C environments.
DC Charging Station
FC series
This 230KG station (1750×620×780mm) outputs 200–1000Vdc with dual-gun flexibility: charge alternately or evenly up to 250A per gun. The 7-inch screen enables RFID/OCPP 1.6–2.0 control and POS integration for sensorless payments. Wide input voltage (380V/480V±20%) and 4G/can/485 connectivity ensure stability. IP54 shell with auto-heating operates from –25°C to +50°C, supporting high-altitude (2000m) and humid (5–90% RH) environments.
| Product Parameters | |||||
|---|---|---|---|---|---|
| Product Model | FC601K | FC1201K | FC1501K | FC1801K | |
| Rating | 60KW | 120KW | 150KW | 180KW | |
| Output voltage | 200-1000V | ||||
| Input voltage | AC380V±20% AC480V±20%（Optional） | ||||
| Input Current | 95A | 200A | 230A | 285A | |
| Output Current | 0-200A | 0-250A (300A optional configuration) | |||
| Frequency | 45-60HZ | ||||
| Number of Charging Guns | 2 | ||||
| Charging way | Charge Alternately / Evenly | ||||
| Charge mode | OCPP / RFID / Password / Plug and Play | ||||
| Human-computer interaction | 7-inch color touch screen + IC card contactless reader | ||||
| Network connection | Standard: CAN/485/Ethernet Optional: GPRS/4G | ||||
| Sizes(mm) | 1750*620*780 | ||||
| Weights | 230KG | ||||
| Operating temperature | -25℃~+50℃（Derating above 50℃, with heater for very cold areas） | ||||
| Height above sea level | 2000M | ||||
| IP Rating | IP54 | ||||
| Operating humidity | 5%-90%RH，non-condensing | ||||
| Charge Gun Cable Length | 5M (Cable length can be customized) | ||||
| Applicable standards | GB/T18487/EN62196/EN61851-23,JEVSG 105/CHAdeMO | ||||
| Communication protocols | GB/T27930/CHAdeMO2.0/DIN70121,OCPP 1.6(JSON),ISO 15118 | ||||
- Ultra-Fast Charging Maximum 240KW.
- Charging Time : 300KM equal to 10 minutes
- Dual-Gun independently with different charging standards (CCS,GB/T,ChadeMo,NACS)
- Remote diagnostics, Support 4G, Wifi ,Ethernet , OCPP1.6 ,2.0 backends platform and POS Machine.
- Can be equipped with AC contactor /smoking sensor / smart charging connector protection / cable management system/ 10.1 LCD screen.
- Auto Charging (Support Sensorless Payment)
