MAX POWER Test Box
MAX POWER Charging Station Testing Equipment ensures accurate detection of voltage, current, power, and communication protocols for all EV chargers. With high-precision sensors and intelligent diagnostics, it quickly locates faults. Features over-voltage/current/short-circuit protections, feedback load, and 7-inch touchscreen. Portable or cabinet styles for lab/field use.
Charging Station Testing Equipment
Test Box

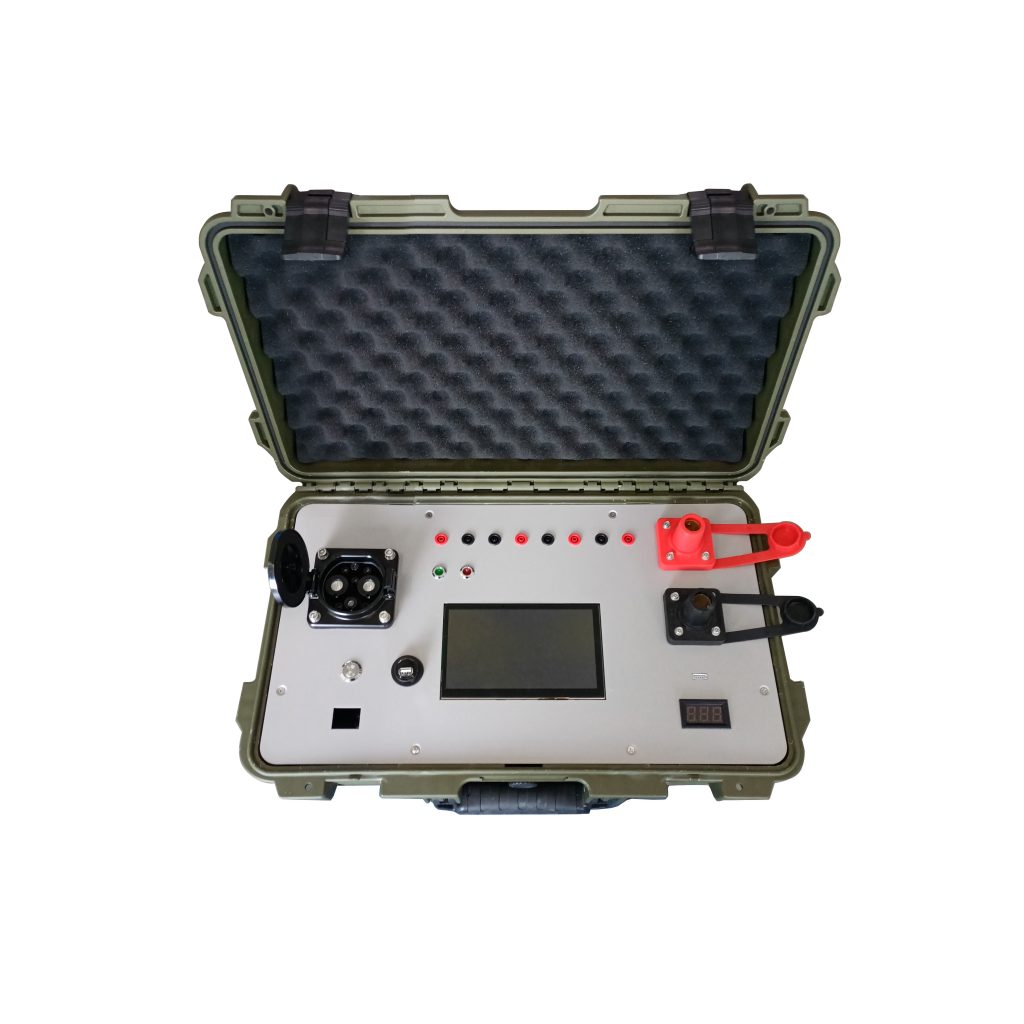

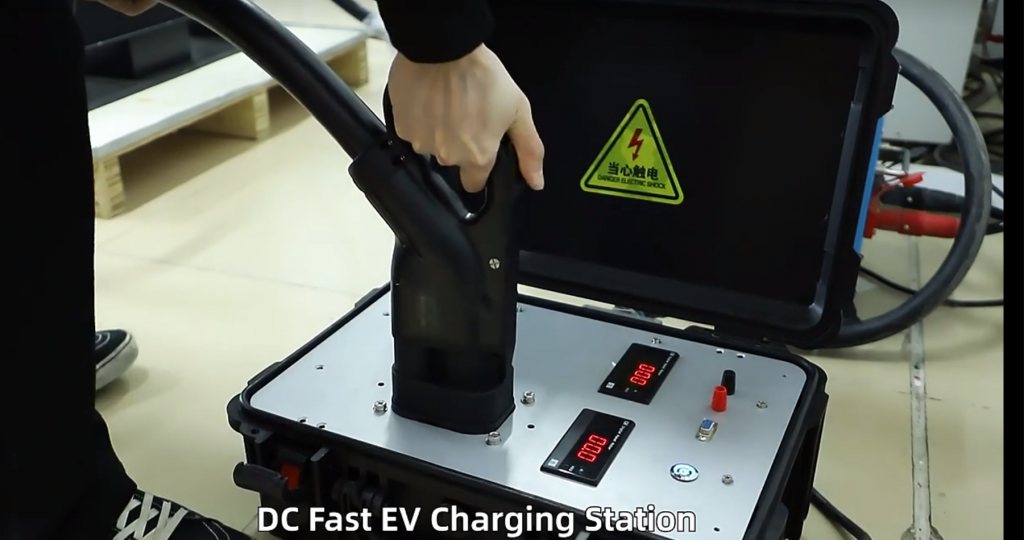

This tester supports GB/T/CCS1/CCS2 protocols up to 1000Vdc/260A. Its 7-inch touchscreen enables real-time monitoring of charging parameters and BMS state simulation (PE pin, mechanical switch, insulation faults). Intelligent diagnostics auto-identify faults, reducing maintenance time by 50%. With IP20 rating and multi-protections (over-temperature/power failure cutoff), it operates from –20°C to +80°C. Feedback load cuts energy costs by 40% during testing.
| Product Parameters | ||
|---|---|---|
| Product Model | CQ250G | |
| Measured Input | GB/T250A, CCS2 200A, CCS1200A (double shot) | |
| OpeRating power | AC220V±10% 50HZ | |
| Maximum voltage at gun mount | DC1000V | |
| Maximum Current for Gun Block | GB/T 250A、CCS2/CCS1 200A | |
| Input Display | HMI screen Display | |
| Communication connector | RS485 | |
| Working environment temperature | -20℃ ~+50℃ | |
| Temperature | -30℃ ~+70℃ | |
| Relative humidity | 5%~90% | |
| IP Rating | IP20 | |
| Protection mode | Automatically cut off the running power in case of power failure, Over-temperature protection. | |
| Sizes(mm) | 550 * 550 * 900 | |
| Usage | Desktop, Portable, Cabinet | |
| Display Mode | 7 inch touch screen | |
| Charging parameter settings | Charging mode, constant voltage, constant current state | Voltage Charging Requirement (V) |
| Current Charging Requirement (A) | Charge Onset Charge | |
| End-of-charge charge | Total charging time | |
| BMS State Simulation | Vehicle connector state simulation | Vehicle connector PE pin state simulation |
| Mechanical Switch S State Simulation | BMS State Simulation | |
| Control Guidance Circuit R4 Resistor Analog | Insulation fault state simulation | |

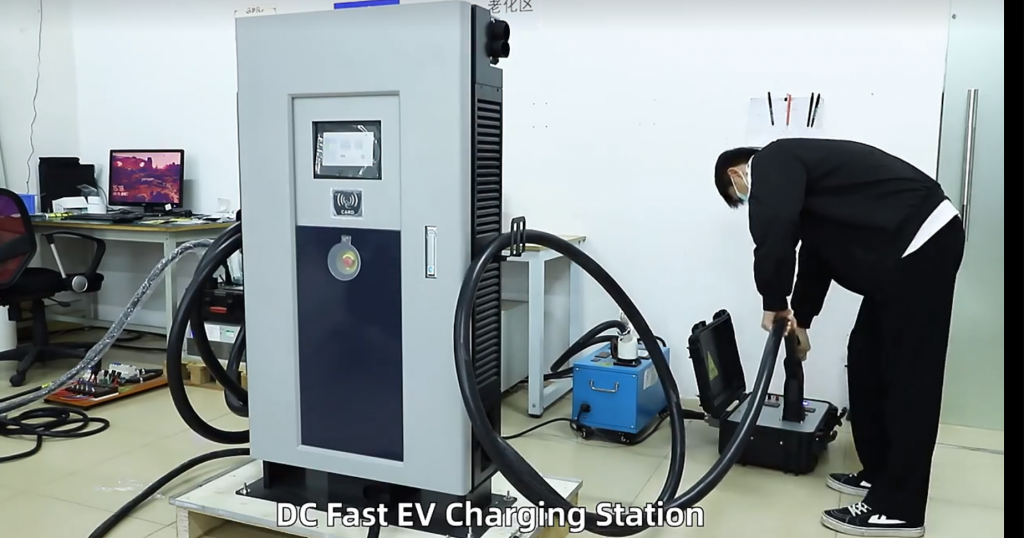

- Support charging pile voltage, current, power, communication protocol and other parameters
testing, to meet the testing needs of various types of charging pile. - Adopts high-precision sensors and advanced algorithms to ensure the accuracy of test data.
- Built-in intelligent diagnostic system, automatically identifies charging station fault types, quickly locates the problem and significantly reduces maintenance time!
- Compact and lightweight, easy to operate, suitable for on-site inspection and mobile operation and maintenance.
- Equipped with over-voltage, over-current, short-circuit and other multiple protection mechanisms to ensure that the test process is safe and worry-free, guarding the safety of equipment and personnel.
- Equipped with feed-back loads to reduce testing costs, low-carbon and environmentally friendly.
