MAX POWER ACQ Series
Intelligent EV charging station. Deliver 7-22KW output with dynamic load balancing and multi-language control. TUV-certified (IP54) for stable operation from -20°C to 50°C. Support OCPP/RFID charging, remote diagnostics, and UK-specialized pen-fault protection. Charge smarter, easy to install.
OEM / ODM
Rich Configuration
Intelligent control
Safety protection

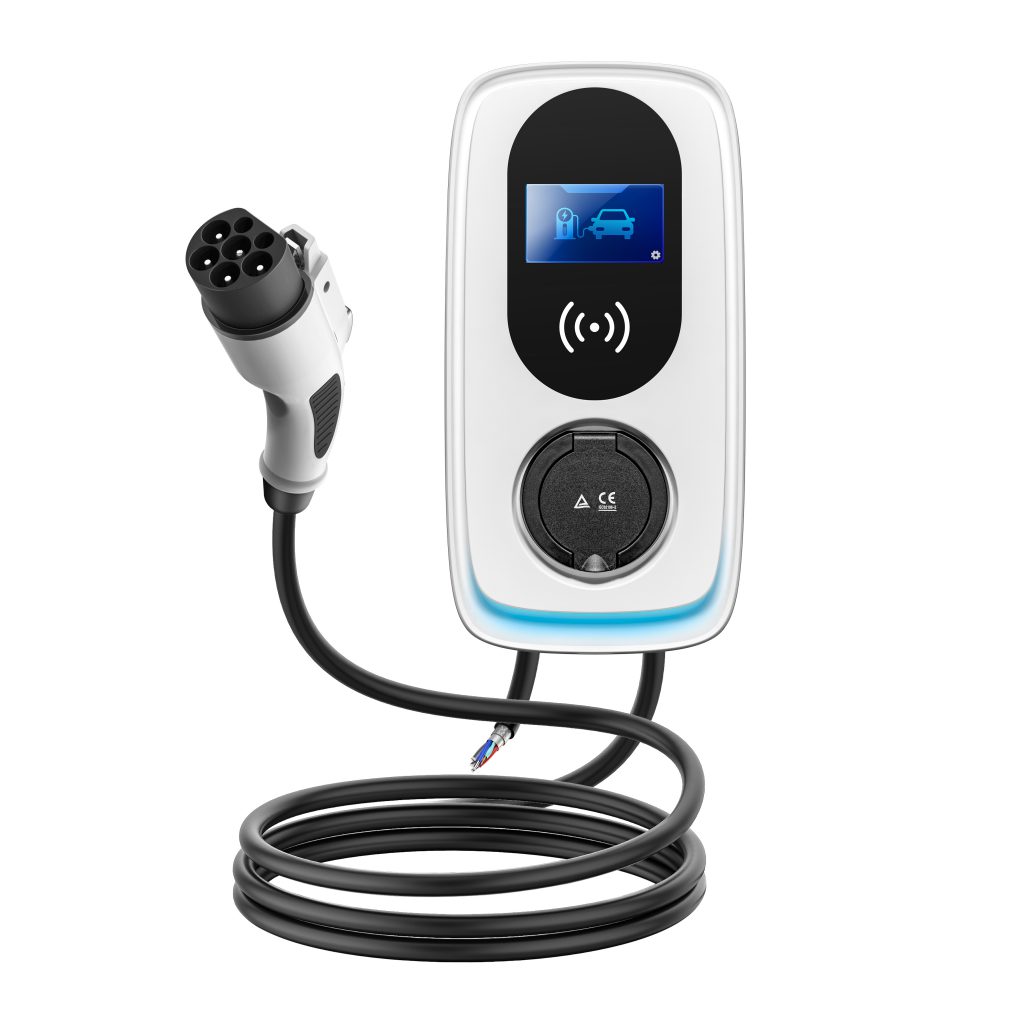

AC Single Gun Charging Station
ACQ series
Designed for modern households, the ACQ Series offers three power tiers (7KW/11KW/22KW) in a unified 380×1360×320mm chassis. With 15kg lightweight construction and IP54-rated casing, it withstands extreme altitudes (2000m) and temperatures (-25°C to +50°C).
Specification of ACQ Series
| Product Parameters | |||
|---|---|---|---|
| Product Model | ACQ0732 | ACQ1116 | ACQ2232 |
| Rating | 7KW | 11KW | 22KW |
| Output voltage | AC220V±20% | AC380V | |
| Input voltage | AC110V / AC220V | AC380V / AC480V | |
| Input Current | 32A | 16A | 32A(64A) |
| Output Current | 32A | 16A | 32A |
| Human-computer interaction | Indicator lights + 4.3-inch color Display | ||
| Sizes(mm) | 380*1360*320 | ||

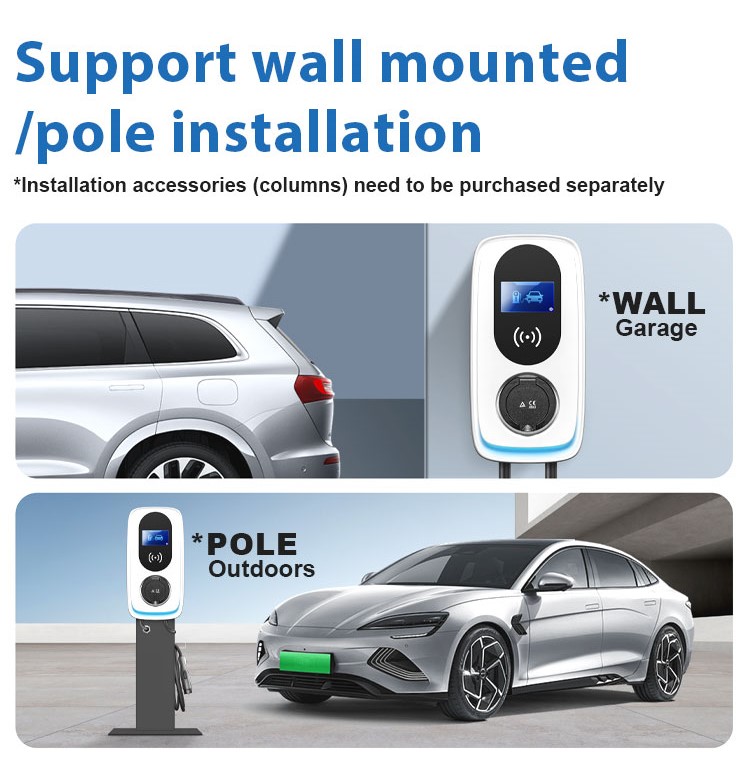

| Installation | Wall/pillar | ||
| IP Rating | IP54 | ||
| Charging mode | OCPP / RFID / Plug and Play | ||
| Charge Gun Cable Length | 5M | 5M | 5M |
| Weights | 15KG | ||
| NetWorking protocol | OCPP1.6 | ||
| Operating temperature | -25℃ ~ +50℃(DeRating above 50℃, with heater for very cold areas) | ||
| Height above sea level | 2000M | ||
| NetWorking Methods | wifi; bluetooth; 4G; LAN | ||
| Smart charging | Dynamic Load Balancing(Optional) | ||
| Leakage protection | Type A + DC 6mA | ||
| Ground detection | Pen fault(For the UK market) | ||
| Applicable standards | GB/T20234/EN62196/EN61851-1 JEVSG 105/CHAdeMO | ||
| Communication protocols | GB/T27930/CHAdeMO2.0/DIN70121,OCPP 1.6(JSON),ISO 15118 | ||
Rich Configuration
- Support DLB (Dynamic Load Balancing), OCPP, pen fault, A+6, MID meter.
Intelligent control
- Language support: free switching of multiple languages (four languages can be switched at will).
- There is a local management background, you can do it yourself to switch the charging method and
billing method.
Safety protection
- Support trial version
- Can be connected to our after-sales platform, remote diagnosis, upgrade, change the configuration, etc.
- TUV certification, IP54 protection level, -20 ℃ to 50 ℃ stable operation, wind and rain without worry.
