MAX POWER BCV Series
Your ultimate vertical energy storage solution. Ensures emergency power during disasters, wilderness operations, and grid failures. Features smart valley charging/peak discharging to cut costs, PV direct connection for 30% higher efficiency, and OCPP 2.0 integration. IP54-rated with fast heat dissipation. Future-proof with IoT energy management.

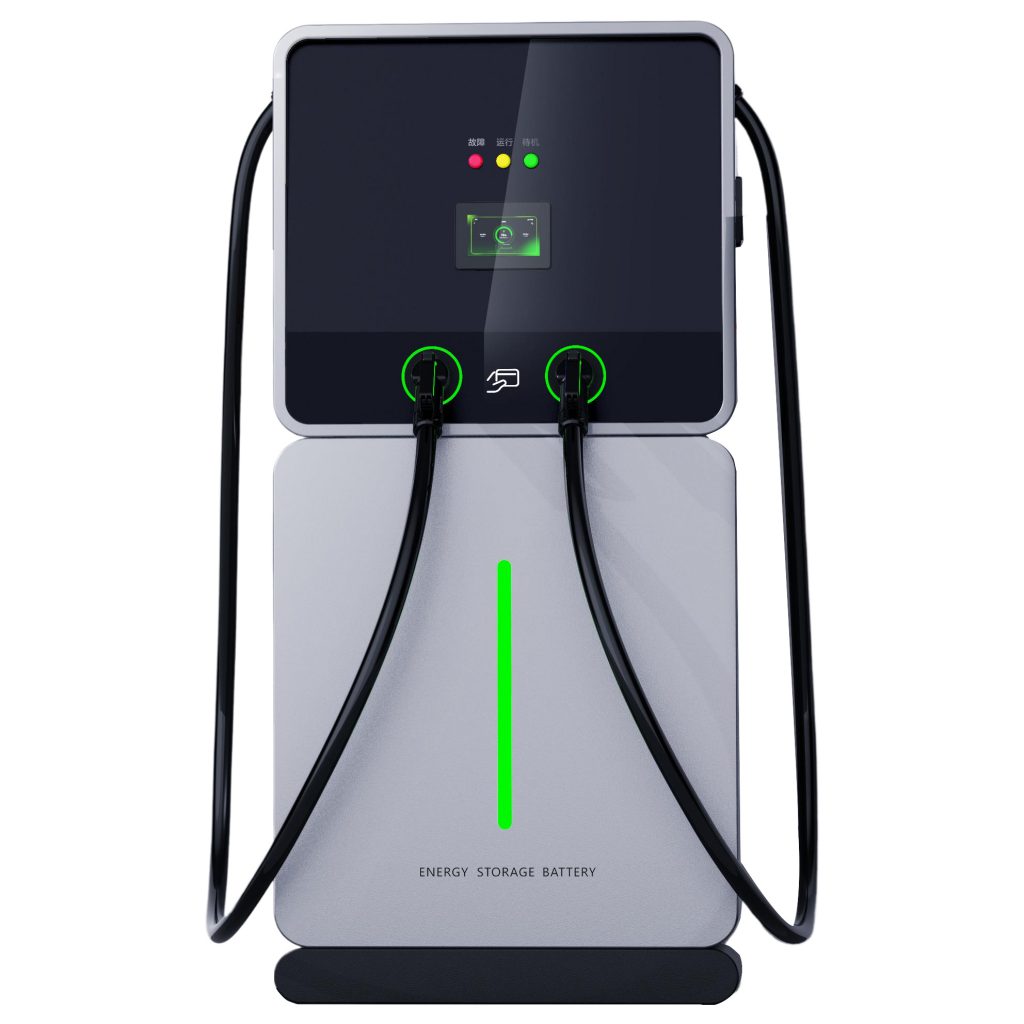

Vertical energy storage
BCV series
Engineered for resilience, the BCV series boasts a compact vertical design (H:1200mm × W:600mm × D:400mm) with robust IP54 protection. Its 600Wh/600W core supports 800W peak output, operating from -20°C to 55°C with intelligent load adjustment above 45°C. Dual-input flexibility accepts DC 200-750V/120A and AC 260-480V/92A at ≥0.99 power factor.
| Product Parameters | |
|---|---|
| Product Model | BCV 60KWh60KW |
| DC Input | Voltage range 500V ~ 750V |
| 0~120A | |
| Power factor ≥ 0.99 | |
| AC Input | Voltage range 260V~485V |
| 0~92A | |
| Power factor ≥ 0.99 | |
| Frequency 45 ~ 65HZ | |
| Output Characteristics | Maximum power 60KW |
| Voltage range 150V ~ 1000V | |
| Output Current 0~200A | |
| Characteristics of energy storage replenishment | Charger supplemental power max. 60KW |
| Maximum power of photovoltaic supplement 20KW | |

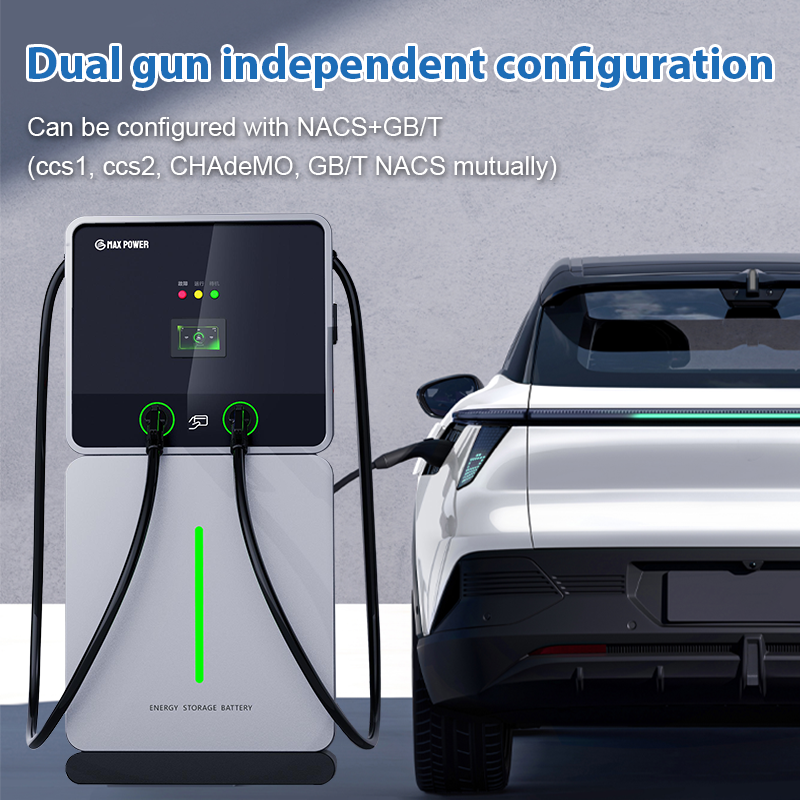

| Applicable protocol | GB/T, CGS, CHAdeMO 2.0/DIN 70121, OCPP |
| Temperature range | Recommended 0 ~ 55 °C, temperature over 45 °C intelligent down load |
| Humidity range | 5±90%; no condensation |
| Altitude | <2000M |
| Charging mode | DC fast charging |
| IP Rating | IP54 |
| Human-computer interaction | LCD color touch screen |
| Network connection | LAN/WiFi/4G |
| Charging operation | LCD Panel / Swipe Card / OCPP / Domestic Operation |
- Emergency power supply, adapt to extreme disaster weather (earthquake power outage, war, typhoon and other force majeure factors caused power shortages).
- Wilderness operation power supply / power island power supply.
- Valley charge vs peak discharge, maximize electricity utilization & cost saving; slow charging and quick discharging to reduce grid dependence.
- Optimize energy distribution in real time to ensure stable and efficient power consumption. applicable for both household power consumption and commercial operation.
- Support the combination with smart grid, IOT technologies, can be integrated to smart energy management system in the future.
- Support OCPP2.0, remote diagnosis, remote management, POS payment system.
- Support PV direct connection, eliminating the inverter, more efficient and lower system cost.
